PU Hoses

PU Tube (Food/Medical Grade)

Name: PU Tube (Food/Medical Grade)
SKU: EU-0320

FDA Approved. Good resistance to moisture, resistant to mycete, even suitable for wet and bacterial environment. Anti-aging, long service life. Low temperature resistant, Anti-UV, can be used under harsh conditions, exposure to outdoor sunlight. Anti-hydrolysis, transparent, more soft and good flexibility.

Model

Add to Quote Request a Quote

Features

Technical Parameters

Specification	Value
Material	Polyether Polyurethane
Fluid	Air, Water (fluid)
Hardness	95A ~ 98A
Operating Temperature	-40°C ~ +80°C

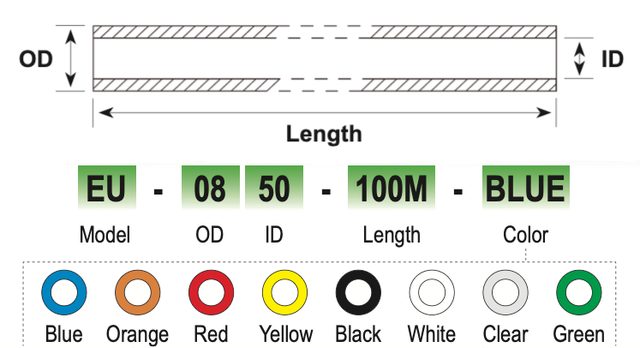

Size, Model and Color Guide

PU Tube (Food/Medical Grade) technical drawing 1

EU - OD ID - Length - Color

Dimensions: OD · ID · Length

Colors: Blue · Orange · Red · Yellow · Black · White · Clear · Green

Model Parameters

Part No.	OD	ID	Length	Net Weight (kgs/roll)	Max Working Pressure (bar at 20°C)	Max Burst Pressure (bar at 20°C)	Max Bend Radius (mm at 20°C)
EU-0320	3mm	2mm	200m	1.4	10bar	30bar	10mm
EU-0425	4mm	2.5mm	200m	1.9	10bar	30bar	10mm
EU-0640	6mm	4mm	200m	3.9	10bar	30bar	15mm
EU-0855	8mm	5.5mm	100m	3.3	8bar	24bar	20mm
EU-0850	8mm	5mm	100m	3.8	10bar	30bar	20mm
EU-1065	10mm	6.5mm	100m	5.6	10bar	30bar	30mm
EU-1280	12mm	8mm	100m	7.8	10bar	30bar	35mm
EU-1410	14mm	10mm	100m	9.4	8bar	24bar	55mm
EU-1612	16mm	12mm	100m	11	8bar	24bar	65mm
EU-5/32	5/32"	0.098"	200m	1.9	10bar	30bar	10mm
EU-1/4	1/4"	0.167"	200m	4.4	10bar	30bar	15mm
EU-5/16	5/16"	0.197"	200m	3.8	10bar	30bar	20mm
EU-3/8	3/8"	1/4"	200m	4.9	10bar	30bar	30mm
EU-1/2	1/2"	1/3"	200m	8.8	10bar	30bar	35mm
