PA Hoses
Nylon Tube (PA11)
The Nylon tube (PA11) featuring excellent resistance to solvents, oils, greases, petroleum products,more excellent flexibility than PA12 tube. Used for automotive oil pipes, volatile solvent delivery pipes etc. Comply with ROHS.
Features
The Nylon tube (PA11) featuring excellent resistance to solvents, oils, greases, petroleum products,more excellent flexibility than PA12 tube. Used for automotive oil pipes, volatile solvent delivery pipes etc. Comply with ROHS.
Technical Parameters
| Specification | Value |
|---|---|
| Material | Nylon, Polyamide (PA11) |
| Fluid | Air, Water, Oil, Normal PH Solvents |
| Hardness | 60D |
| Operating Temperature | -40°C ~ +90°C |

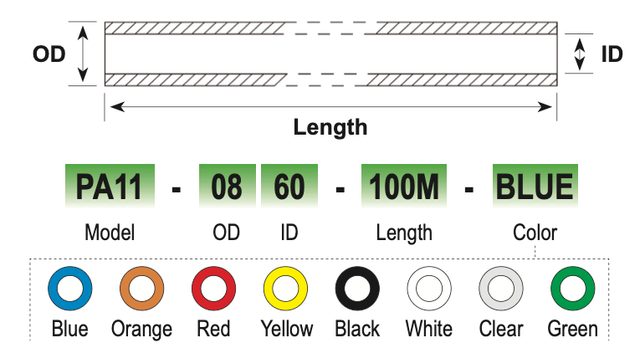

Size, Model and Color Guide
PA11 - OD ID - Length - Color
Dimensions: OD · ID · Length
Colors: Blue · Orange · Red · Yellow · Black · White · Clear · Green
Model Parameters
| Part No. | OD | ID | Length | Net Weight (kgs/roll) | Max Working Pressure (bar at 20°C) | Max Burst Pressure (bar at 20°C) | Max Bend Radius (mm at 20°C) |
|---|---|---|---|---|---|---|---|
| PA11-0425 | 4mm | 2.5mm | 200m | 1.6 | 20bar | 60bar | 15mm |
| PA11-0640 | 6mm | 4mm | 200m | 3.3 | 20bar | 60bar | 20mm |
| PA11-0860 | 8mm | 6mm | 100m | 2.3 | 20bar | 60bar | 30mm |
| PA11-1080 | 10mm | 8mm | 100m | 3 | 15bar | 45bar | 45mm |
| PA11-1075 | 10mm | 7.5mm | 100m | 3.6 | 20bar | 60bar | 40mm |
| PA11-1210 | 12mm | 10mm | 100m | 3.6 | 15bar | 45bar | 55mm |
| PA11-1290 | 12mm | 9mm | 100m | 5.2 | 20bar | 60bar | 50mm |
| PA11-1/4 | 1/4" | 0.165" | 200m | 3.8 | 20bar | 60bar | 25mm |
| PA11-3/8 | 3/8" | 1/4" | 100m | 4 | 20bar | 60bar | 40mm |
| PA11-1/2 | 1/2" | 3/8" | 100m | 5.7 | 20bar | 60bar | 50mm |
