PA Hoses

Nylon Tube (PA12)

Name: Nylon Tube (PA12)
SKU: PA12-0425

The Nylon tube (PA12) excels in resistance to abrasion and cracking. Excellent resistance to solvents, higher or lower temperatures, oils, greases, petroleum products. It is more suitable to chemical piping and broad temperature range, higher pressure. Comply with ROHS.

Model

Add to Quote Request a Quote

Features

Technical Parameters

Specification	Value
Material	Nylon, Polyamide (PA12)
Fluid	Air, Water, Oil, Normal PH Solvents
Hardness	60D
Operating Temperature	-40°C ~ +100°C

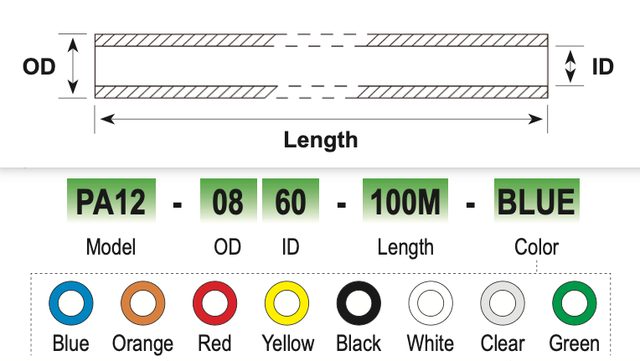

Size, Model and Color Guide

PA12 - OD ID - Length - Color

Dimensions: OD · ID · Length

Colors: Blue · Orange · Red · Yellow · Black · White · Clear · Green

Model Parameters

Part No.	OD	ID	Length	Net Weight (kgs/roll)	Max Working Pressure (bar at 20°C)	Max Burst Pressure (bar at 20°C)	Max Bend Radius (mm at 20°C)
PA12-0425	4mm	2.5mm	200m	1.6	20bar	60bar	15mm
PA12-0640	6mm	4mm	200m	3.3	20bar	60bar	20mm
PA12-0860	8mm	6mm	100m	2.3	20bar	60bar	30mm
PA12-1080	10mm	8mm	100m	3	15bar	60bar	45mm
PA12-1075	10mm	7.5mm	100m	3.6	20bar	60bar	40mm
PA12-1210	12mm	10mm	100m	3.6	15bar	60bar	55mm
PA12-1290	12mm	9mm	100m	5.2	20bar	60bar	50mm
PA12-1/4	1/4"	0.165"	200m	3.8	20bar	60bar	25mm
PA12-3/8	3/8"	1/4"	100m	4	20bar	60bar	40mm
PA12-1/2	1/2"	3/8"	100m	5.7	20bar	60bar	50mm
